High-performance I/O using MEMS-based Storage for Scientific Applications

Overview

MEMS-based storage systems are potentially a whole new storage technology capable of a dramatic decrease in entry cost, access time, volume, mass, power dissipation, failure rate, and shock sensitivity. The MEMS-based storage device is intended to fill the large RAM/disk access gap and to create complete system-on-a-chip solutions for computer systems. It can also be designed to take the place of traditional storage system using hard disks and/or tapes to achieve either higher performance or better reliability.

In our research, we are using MEMS-based storage in parallel I/O system to largely improve parallel I/O performance. The high performance, distinguished two-dimensional data layout and access method, and the built-in parallelism make it possible to improve performance for current parallel I/O system using this new type of storage device, especially for parallel scientific applications and those reading/writing multi-dimensional arrays in various access patterns. We create an infrastructure to study the performance impact of MEMS-based storage on modern parallel I/O system and try to design software optimizations for such system to improve the I/O performance for various access patterns discovered in scientific applications.

Research Topics

Infrastructure

We implemented an infrastructure to simulate/emulate parallel I/O. There are three levels in this infrastructure: client w/ local storage, parallel file system, I/O server w/ end storage, as in Figure 1. In current implementation, each client can make I/O request providing arguments (file, offset, len, buffer), while the servers will perform underlying I/O by sending storage request and providing arguments (block\#, block-offset, len) to the end storage. Clients can do caching/buffering of data in their local storage, which has not been implemented currently.

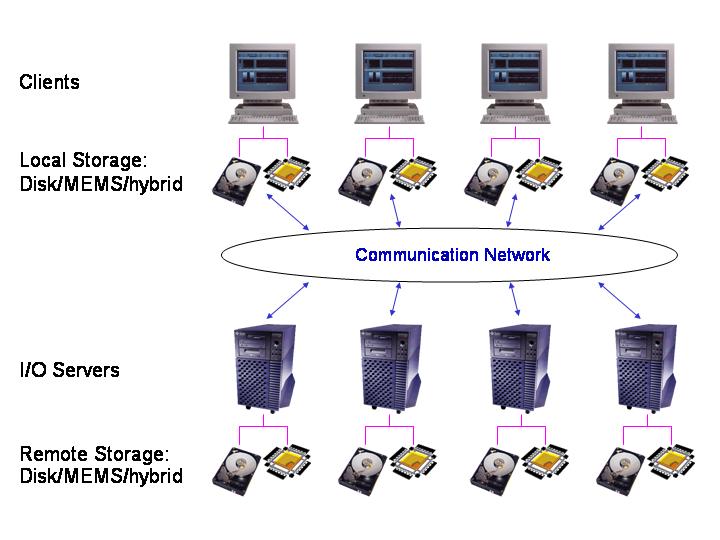

Figure 1. Parallel I/O Infrastructure Using MEMS-based Storage


In this infrastructure, there are two places that may benefit from MEMS: we can either put MEMS in the remote storage for general purpose performance improvement (maybe more than that) or put it in local storage for caching/buffering optimizations. Above this infrastructure, we can run different kinds of applications with various interesting access patterns, just requiring them to feed their I/O requests to the clients in the form of (file, offset, len, buffer).

People

Alok Choudhary, Jianwei Li, Wei-keng Liao (Northwestern University)
Rob Ross, Rajeev Thakur (Argonne National Laboratory)

Related Links

References

  1. Schlosser, S., Griffin, J., Nagle, D., Ganger, G., Filling the Memory Access Gap: A Case for On-Chip Magnetic Storage. Technical Report CMU-CS-99-174, Carnegie Mellon University School of Computer Science, November 1999.
  2. Schlosser, S., Griffin, J., Nagle, D., Ganger, G., Designing Computer Systems with MEMS-based Storage. In ASPLOS 2000, November 13-15, 2000.
  3. L. Richard Carley, Gregory R. Ganger, and David F. Nagle, MEMS-Based Integrated-Circuit Mass-Storage Systems. in COMMUNICATIONS OF THE ACM November 2000, Vol.43, No.11.
  4. Griffin, J., Schlosser, S., Ganger, G., Nagle, D., Operating Systems Management of MEMS-based Storage Devices. In OSDI 2000, October 23-25, 2000.
  5. Griffin, J., Schlosser, S., Ganger, G., Nagle, D., Modeling and Performance of MEMS-Based Storage Devices. In Proceedings of SIGMETRICS 2000, June 18-21, 2000. Published as Performance Evaluation Review 28(1):56-65, June 2000.
  6. Tara M. Madhyastha, Katherine Pu Yang, Physical Modeling of Probe-Based Storage.In Proceedings of the Eighteenth IEEE Symposium on Mass Storage Systems (April 2001).
  7. Z.N.J. Peterson, S.A. Brandt and D.D.E. Long. Data Placement Based on the Seek Time Analysis of a MEMS-based Storage Device. A Work in Progress (WIP) at: the Conference on File and Storage Technologies (FAST), USENIX, 2002.
  8. R.C. Burns, R.M. Rees, Z.N.J. Peterson, and D.D.E. Long. Allocation and Data Placement Using Virtual Contiguity. iNIST/SSRC/01-001. 2001.
  9. Pu Yang. Modeling Probe-based Storage Devices. Tehcnical report. Department of Computer Science, University of California Santa Cruz, June 2000. Master's thesis.
  10. Feng Wang, Scott Brandt. Using MEMS Device as Disk Write Buffer. Department of Computer Science, University of California Santa Cruz. 2001
  11. Ying Lin, Power consumption on MEMS-based storage device. Report for cmps290s, December 1, 2001
  12. John Linwood Griffin, Jiri Schindler, Steven W. Schlosser, John S. Bucy, Gregory R. Ganger, Timing-accurate Storage Emulation. In Proceedings of the Conference on File and Storage Technologies (FAST), January 28-30, 2002.
  13. P. Vettiger, M. Despont, U. Drechsler, U. Dürig, W. Häberle, M. I. Lutwyche, H. E. Rothuizen, R. Stutz, R. Widmer, G. K. Binnig. The 'Millipede'--More than one thousand tips for future AFM data storage. IBM Journal of Research and Development, Directions in information technology, Vol. 44, No. 3, 2000
  14. H. J. Mamin, R. P. Ried, B. D. Terris, and D. Rugar, High-Density Data Storage Based on the Atomic Force Microscope. Proc. IEEE 87, No. 6, 1014-1027 (June 1999).
  15. B. Hong, Exploring the Usage of MEMS-based Strorage as Metadata Storage and Disk Cache in Storage Hierarchy. Department of Computer Science, University of California Santa Cruz. 2003
  16. Steven W. Schlosser, Jiri Schindler, Anastassia Ailamaki, and Gregory R. Ganger, Exposing and Exploiting Internal Parallelism in MEMS-based Storage. Carnegie Mellon University Technical Report CMU-CS-03-125, March 2003.
  17. M. Uysal, A. Merchant, and G. Alvarez, Using MEMS-based stroage in disk arrays. Proc. of 2nd USENIX Conference on File and Storage Technologies, April 2003
  18. Hailing Yu, Divyakant Agrawal, and Amr El Abbadi, Towards Optimal I/O Scheduling for MEMS-Based Storage. 20 th IEEE/11 th NASA Goddard Conference on Mass Storage Systems and Technologies (MSS'03) April 07 - 10, 2003 San Diego, California
  19. H. Yu, D. Agrawal, and A. E. Abbadi, Tabular Placement of Relational Data on MEMS-based Storage Devices. In proceedings of the 29th Conference on Very Large Databases(VLDB), 680-693. September 2003
  20. H. Yu, D. Agrawal, and A. E. Abbadi, Declustering two-dimensional datasets over MEMS-based Storage. Computer Science Department, UCSB, 2003
